20 ft Pallet Rack Uprights
Price range: $249.0 through $279.0 *Pricing & availability is subject to change without notice. Product may vary slightly from photos.

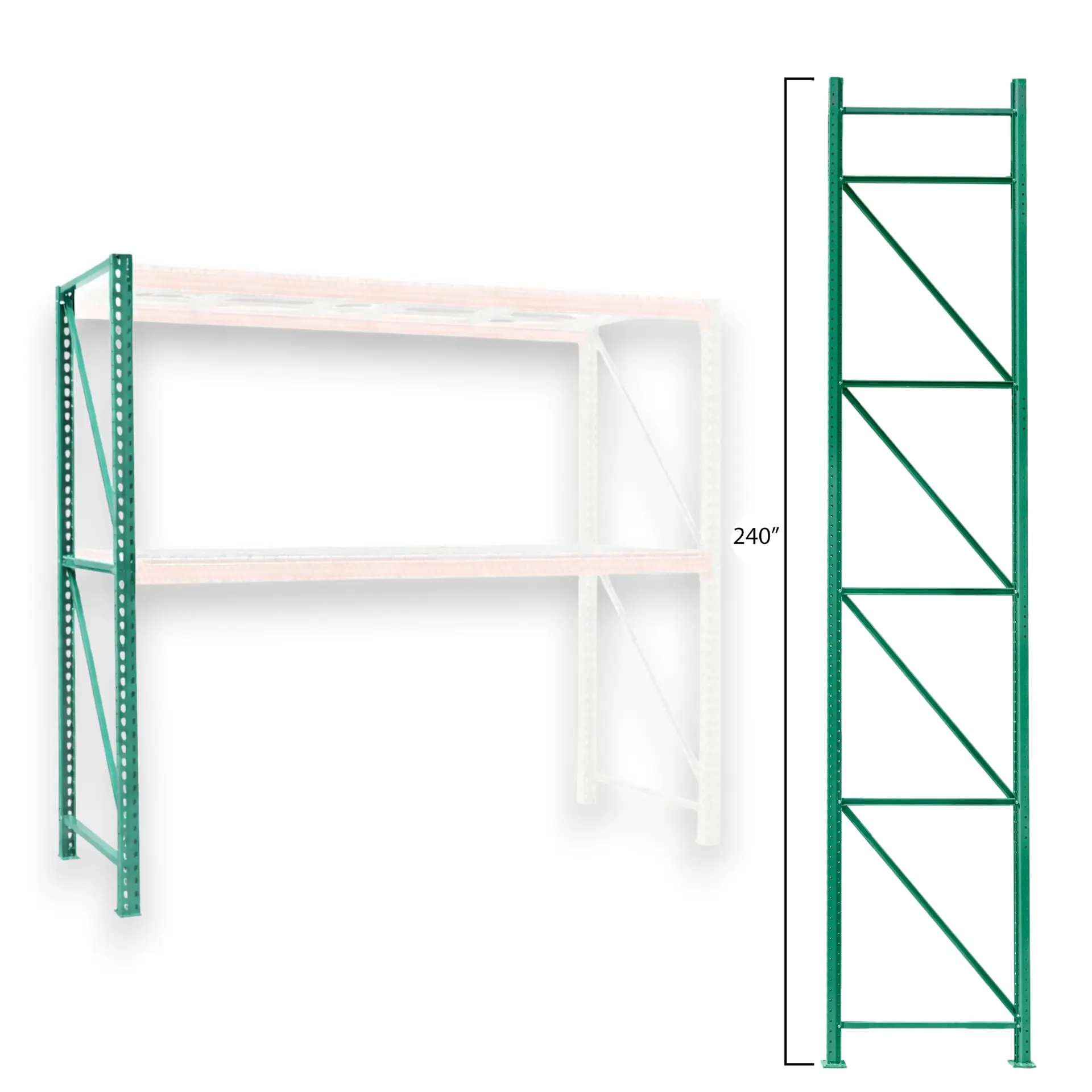

20 ft Pallet Racking Uprights are the vertical frames that support your pallet racking system. Two uprights are required to create a starter section, while a single upright can be used to extend an existing row with an add-on section. The 240″ height allows businesses to maximize vertical warehouse storage and increase pallet capacity.
Product successfully added to the Quote List
Description
20′ Pallet Racking Uprights are the vertical frames that support your pallet racking system. Two uprights are required to create a starter section, while a single upright can be used to extend an existing row with an add-on section. The 240″ height allows businesses to maximize vertical warehouse storage and increase pallet capacity.
Depth Options:
- 42″ (Standard pallet Size)
- 48″
Product Specifications
-
Footplate Size: 8″ x 8″ steel footplate for strong floor support
-
Load Capacity: Rated up to 23,100 lbs per bay at 48″ beam spacing
-
Style: Standard teardrop pallet racking compatible with most major brands
-
Anchoring: 2 anchor bolts recommended per footplate (not included)
-
Assembly: Tear drop Style Snap-in beam design for fast and easy installation
Complete your pallet racking system by pairing these uprights with our teardrop pallet racking beams and wire decking to create strong, reliable storage levels for palletized inventory.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 240 in |
| Depth | 42", 48" |
